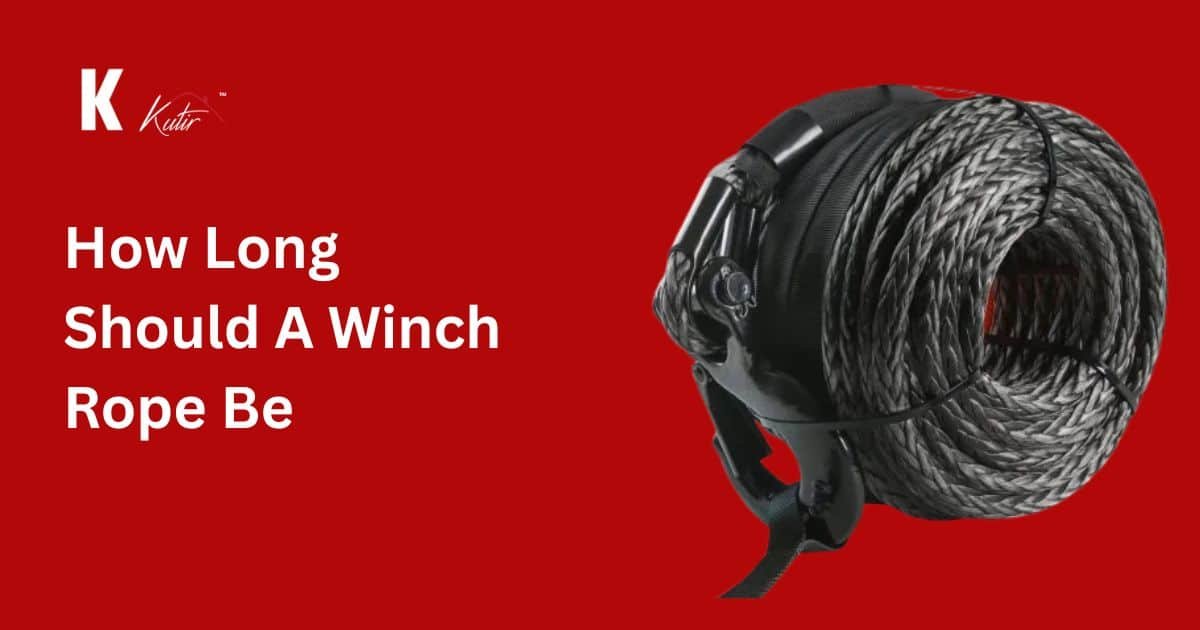

Most winch ropes on the market are too long for safe and effective pulling. That’s right as more rope often means less pulling power. Every extra layer on your winch drum reduces torque and increases failure risk. If you’ve been stuffing 100+ feet onto your drum without checking load capacity or terrain needs, you could be damaging your gear and compromising every recovery.
So, how long should a winch rope be?
For ATVs, 50–75 feet is ideal. Jeeps and 4x4s need 80–100 feet, while heavy trucks may require 100–125 feet. Longer ropes reduce pulling power with each wrap. A shorter line with an extension offers more control, safety, and flexibility in the field.
At Kutir Tools, we understand the demands of real-world recovery. That’s why our gear from compact tools to rugged accessories is designed with performance in mind. Whether you’re upgrading your recovery kit or fine-tuning your rig, we focus on the details that keep your equipment ready for anything.
Importance Of Choosing The Right Sized Winch
Selecting the right-sized winch is essential for both safety and reliable performance. If your winch is too small, it can stall, overheat, or fail under pressure that increases the risk of damage or injury. On the other hand, going too big adds unnecessary weight, which can affect your vehicle’s handling and stress mounting points.
The industry standard is to select a winch rated for 1.5 to 2 times your vehicle’s gross weight, accounting for added gear and uphill pulls.
This gives you the power needed for angled pulls and difficult terrain. You also need to consider your mounting system, battery output, and rope compatibility. Choosing wisely keeps your recoveries smooth, your equipment intact, and your setup ready when it matters.
What Is The The Correct Diameter Size Winch Rope [Based On The Purposes]
The average winch rope diameter ranges from 1/4 inch to 1/2 inch, depending on what you drive and how you recover. Selecting the right diameter is critical to winch safety and drum efficiency.
Off-Road / Trail Use
Use a 3/8-inch (9.5 mm) synthetic rope for most off-road vehicles. If you’re driving a Jeep, Bronco, or similar 4×4, your winch likely pulls between 8,000 and 10,000 lbs. This diameter gives you the right balance of strength, flexibility, and spool capacity.
Overlanding / Expedition Use
Step up to a 7/16-inch (11 mm) synthetic rope if your vehicle is loaded for long-range travel. Overland builds with rooftop tents, recovery gear, and extra fuel push your winch requirements to 10,000 to 12,000 lbs or more. A thicker rope provides the breaking strength needed for repeated, heavy pulls.
Work / Utility Use (Plows, Trailers, Farm Equipment)
For work setups, a 5/16-inch (8 mm) rope is often the best fit. Whether you’re winching a snowplow, hauling equipment, or running a utility trailer, these tasks demand short, stable pulls. Winch ratings here usually sit between 4,000 and 6,000 lbs. This diameter keeps your setup compact and efficient.
Standard Winch Rope Lengths by Vehicle Type
Winch rope length should match the size of your vehicle and the type of recovery you expect. Too much rope reduces pulling power. Too little limits your reach. Below are the standard winch rope lengths recommended for different vehicle classes.
ATVs and UTVs
A rope length between 50 and 75 feet is appropriate for ATVs and UTVs. These lightweight machines operate in confined areas where long pulls are rarely necessary. A shorter rope keeps the drum compact, reduces retrieval time, and lowers the risk of bunching during angled recoveries.
Jeeps and Small Trucks
For Jeeps and small 4×4 trucks, a rope length of 80 to 100 feet is considered standard. These vehicles often weigh between 4,000 and 6,000 pounds and encounter variable terrain. This range offers enough reach to access distant anchor points and maintain safe drum wraps throughout a recovery.
Large Trucks and Commercial Vehicles
Larger trucks and commercial vehicles require 100 to 125 feet of rope for effective recoveries. These heavier vehicles frequently operate in demanding environments where longer distances between vehicle and anchor are common. This extended length increases recovery options but requires close attention to rope management.
How To Extend Winch Cable When Your Current Length Is Not Enough?
If your winch cable breaks, use a dedicated winch extension strap or rope. Never link chains, hooks, or makeshift items, as this creates significant safety hazards. Always verify weight ratings and secure all attachments using approved, undamaged hardware.
- Use a Winch Extension Strap/Rope: Select a synthetic or steel extension rated for at least the same capacity as your winch.
- Inspect All Gear: Check your extension and hardware for frays, cuts, or defects before use.
- Secure Connections: Join the extension to your winch line with a bow shackle or D-ring, ensuring all pins are tight and properly seated.
- Avoid Linking Hooks: Never connect two winch hooks directly, as this is unsafe and can cause failure under load.
- Anchor Properly: Attach the end of the extension to a strong anchor point using a tree saver strap, ground anchor, or recovery point designed for winching.
- Maintain Tension: Keep the line taut to minimize slack and reduce shock loads.
- Monitor During Winching: Continuously watch all connections and the load for shifting or stretching that could indicate failure risks.
How To Choose The Right Winch Rope?
1. Rope Material (Synthetic vs. Steel):
- Synthetic Rope: Lightweight, easy to handle, and safer under tension. If it snaps, it drops to the ground instead of recoiling, reducing the risk of injury. It also floats in water, won’t rust, and performs well in off-road conditions.
- Steel Cable: Built for durability, especially in harsh environments. It resists abrasion from rocks, edges, and rough surfaces, making it reliable for industrial and commercial use. However, it’s heavier, can fray over time, and stores more kinetic energy, so always wear gloves and use caution during operation.
2. Rope Rating (Breaking Strength):
Choose a minimum breaking strength at least 1.5 times your winch rated line pull, but ideally 2–2.5 times your vehicle’s gross weight. For example, a 6,000lb Jeep often needs a winch line rated for 9,000–12,000lb to ensure safety margin under varying load angles and terrain resistance.
3. Diameter and Drum Fit:
Ensure the diameter matches your winch drum’s capacity. Overly thick ropes reduce usable length and too thin affects durability. Consult your winch’s manufacturer table for maximum rope thickness and length that fits the drum without “stacking.”
4. Abrasion and Heat Resistance:
Off-roaders in rocky, abrasive terrain must prioritize ropes with abrasion-resistant sheaths or coatings. Synthetic ropes need to be protected from sharp edges and should be paired with a high-quality heat-resistant anchor sleeve to combat drum friction.
5.UV and Chemical Protection:
Synthetic ropes can degrade in constant sunlight or exposure to fuels/oils. If you often winch in exposed, harsh environments (like marine applications or oil fields), look for UV-stabilized fibers and chemical-resistant treatments.
6. Ease of Inspection and Repairs:
Synthetic ropes allow for easier field inspection and self-repair (splicing broken strands is possible on the trail), while steel cables require periodic lubrication and inspection for wire fatigue, rust, or kinks.
In Closing
Choosing the right winch rope involves more than picking a number. It requires understanding your vehicle’s weight, winch capacity, terrain challenges, and spool limitations. Every detail, from diameter to length, affects performance, safety, and recovery efficiency. Whether you’re navigating trails, working on-site, or preparing for remote travel, the right setup makes all the difference.
At Kutir Tools, we design gear for real-world performance. Explore our lineup of reliable tools and accessories built for serious recovery situations. Get equipped with tools that work when it matters most.
Frequently Asked Questions
Question: Can I use a thicker rope for extra strength?
Answer: Yes, but thicker ropes take up more drum space, reducing your total usable length. Only upgrade diameter if your winch and drum can handle the added bulk without compromising line capacity or spooling performance.
Question: What’s the minimum number of wraps I should keep on the drum?
Answer: Always maintain at least 4 to 5 full wraps on the drum during any pull. This prevents the rope from slipping or detaching under heavy load and keeps tension evenly distributed across the drum.
Question: How do I know if my rope is too long for my winch?
Answer: If your rope stacks too high on the drum or causes uneven layering, it’s likely too long. Excess rope reduces pulling power and increases the risk of line damage during angled or off-center pulls.
Question: Does rope material affect the ideal length?
Answer: Yes. Synthetic ropes are lighter and allow longer lengths to be used on the same drum. Steel cables are heavier and bulkier, often limiting length without overfilling the drum.
